CattleMaster 144 Electric Parts
CattleMaster 144 Electric Parts
Click to enlarge image(s)

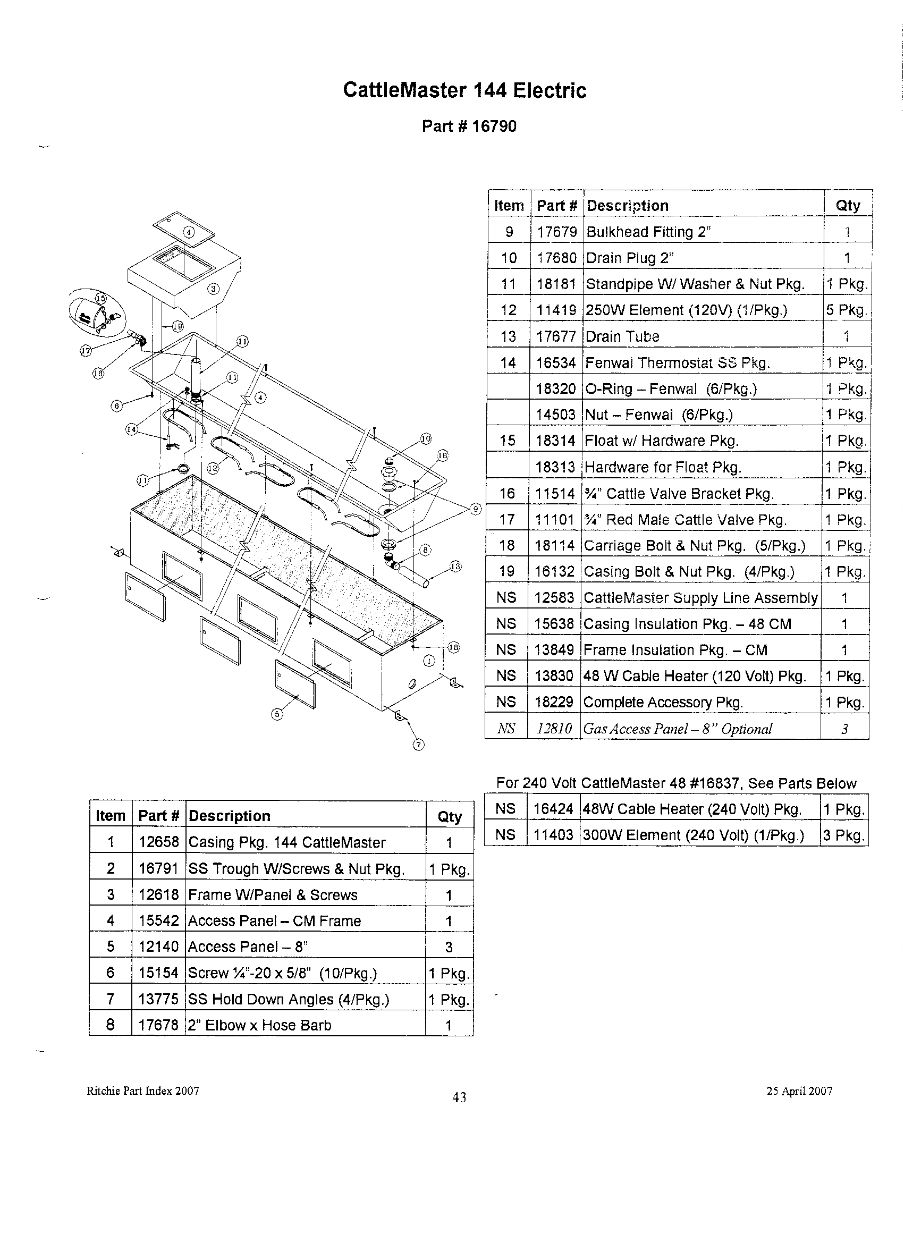

Ritchie CattleMaster 144 Electric waterer and fountain parts. Includes part numbers and prices.
SKU
CattleMaster 144 Electric Parts
CattleMaster 144 Electric Parts
Missing part numbers indicate parts not currently available from Ritchie.
Qty
12658-Casing Pkg - Obsolete - no longer available (+$0.00)
16791-S/S Trough Pkg (+$2,050.98)
12618-Frame w/Panel & Screws obsolete no longer available (+$0.00)
15542-Access Panel-Frame - Obsolete -no longer available (+$0.00)
12140-Access Panel obsolete available while supplies last (+$39.80)
15154-S/S Screw Pkg (10) (+$20.71)
13775-S/S Holddown Angle Pkg (4) obsolete available while supplies last (+$23.10)
17678-2" Elbow x Hose Barb (+$25.78)
17679-2" Bulkhead Fitting (+$50.00)
17680-2" Drain Plug - Obsolete - Available while supplies last (+$15.02)
18181-Standpipe w/Washer & Nut Pkg (+$50.92)
11419-Heating Element 250watt, 120v (+$46.49)
17677-Drain Tube (+$34.82)
16534-S/S Fenwal Thermostat Pkg (+$177.42)
18314-Float w/Hardware Pkg (+$35.00)
18313-Hardware for Float Pkg (+$11.38)
11514-3/4" Cattle Valve Bracket Pkg (+$8.70)
11101-3/4" Red Male Valve Pkg (+$14.06)
18114-Carriage Bolt & Nut Pkg (5) obsolete available while supplies last (+$8.70)
16132-S/S Casing Bolt & Nut Pkg (4) obsolete no longer available (+$0.00)
12583-Supply Line Assembly (+$35.81)
15638-Casing Insulation Pkg - Obsolete - no longer available (+$0.00)
13849-Frame Insulation Pkg - Obsolete - Available while supplies last (+$65.82)
13830-Cable Heater 48watt, 120v (+$39.00)
12810-Gas Access Panel Door (+$103.00)
